Bad Odour due to lack of Sanitation.

It is linked to transmission of diseases such as cholera, diarrhoea, dysentery, hepatitis A, typhoid, polio and exacerbates stunting.

Poor sanitation reduces human well-being, social and economic development due to impacts such as anxiety, risk of sexual assault, and lost educational opportunities.

HHM Gandhvedh helps to keep track of odour levels in its surroundings.

HHM Gandhvedh helps to keep track of Odour levels in its surroundings.

Air Pollution from Dumping Grounds

Due to inhalation of the toxic gases emanating from dumping grounds, residents develop respiratory problems.

Many of them get TB infection, skin diseases and other allergic reactions.

HHM Gandhvedh can act as helpful tool in such cases when the Air Quality touches danger level.

HHM Gandhvedh can act as helpful tool in such cases when the Air Quality reaches danger level.

Gandhvedh^{^®}

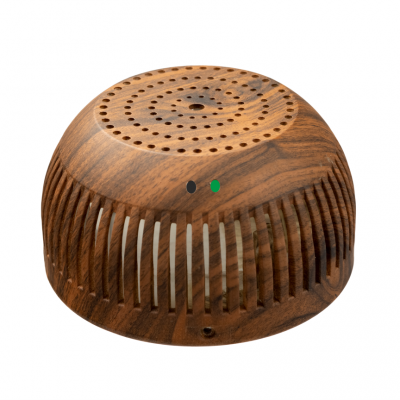

Gandhvedh^® is an IoT based electronic device that monitors Odour, Total Volatile Organic Compound (TVOC), Temperature and Humidity.
Gandhvedh^® detects unpleasant odour emanating from toilets pre-dominantly due to human urine and faeces. People usually avoid using toilets due to unpleasant odour emanating from it. Our product helps users to identify toilets that carry unpleasant smell.
Through its unique dashboard, chart views and mobile alerts, Gandhvedh^® provides information to Community based organizations, NGOs and Government about the condition of toilets they are maintaining.

Gandhvedh^® is an IoT based electronic device that monitors Odour, Total Volatile Organic Compound (TVOC), Temperature and Humidity.
Gandhvedh^® detects unpleasant odour emanating from toilets pre-dominantly due to human urine and faeces. People usually avoid using toilets due to unpleasant odour emanating from it. Our product helps users to identify toilets that carry unpleasant smell.
Through its unique dashboard, chart views and mobile alerts, Gandhvedh^® provides information to Community based organizations, NGOs and Government about the condition of toilets they are maintaining.

Gandhvedh^{^®}

Gandhvedh^® is an IoT based electronic device that monitors Odour, Total Volatile Organic Compound (TVOC), Temperature and Humidity.
Gandhvedh^® detects unpleasant odour emanating from toilets pre-dominantly due to human urine and faeces. People usually avoid using toilets due to unpleasant odour emanating from it. Our product helps users to identify toilets that carry unpleasant smell.
Through its unique dashboard, chart views and mobile alerts, Gandhvedh^® provides information to Community based organizations, NGOs and Government about the condition of toilets they are maintaining.

Gandhvedh^{^®}Monitors

Ammonia and hydrogen sulfide is the most significant odour generated in toilets and constant exposure to them will cause headache, irritation to eyes & nose and unpleasant feeling.

Total Volatile Organic Compounds can be found in paints and thinners, air fresheners, repellents. Exposure to TVOCs may cause irritation of eyes, nose and throat, fatigue, dizziness, cancer.

Temperature is one of the basic parameters characterizing comfort of living beings. Wide variations in temperature have consequences on health.

Humans are sensitive to humid air because human body uses evaporative cooling as the primary mechanism to regulate temperature. For some people higher humidity can result in breathing problems, numbness, and faintness.

Gandhvedh^{^®}Monitors

Gandhvedh^{^®}Features

Wireless

Hover to know more

Monitoring device with wireless network that fits in your palm

gases Detection

Hover to know more

Getting instant information of any Gandhvedh device

Cloud Platform

Hover to know more

The Sensor data is stored in the cloud and made available to other applications

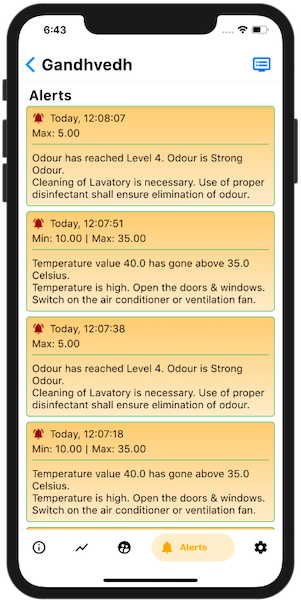

Alerts on Mobile

Hover to know more

Receive alert notifications when the air quality is bad

IoT Enabled

Hover to know more

Users can monitor real time data from any part of the World

Gandhvedh^{^®}Features

Wireless

Tap to know more

Monitoring device with wireless network that fits in your palm

gases Detection

Tap to know more

Getting instant information of any Gandhvedh device

Cloud Platform

Tap to know more

The Sensor data is stored in the cloud and made available to other applications

Alerts on Mobile

Tap to know more

Receive alert notifications when the air quality is bad

IoT Enabled

Tap to know more

Users can monitor real time data from any part of the World

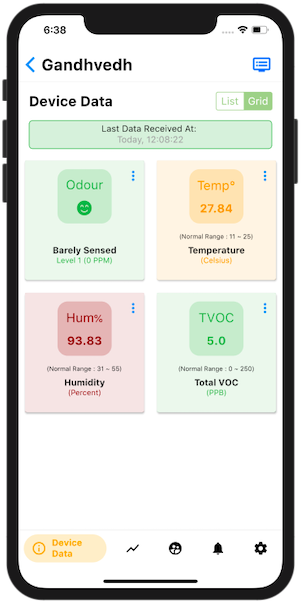

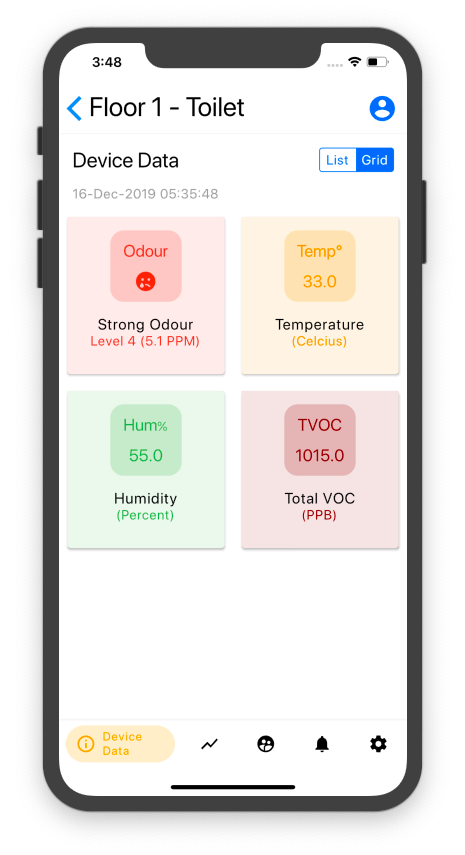

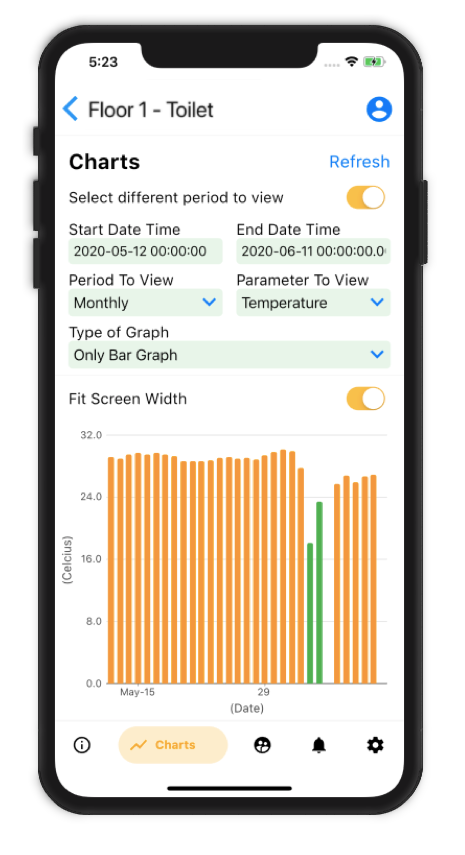

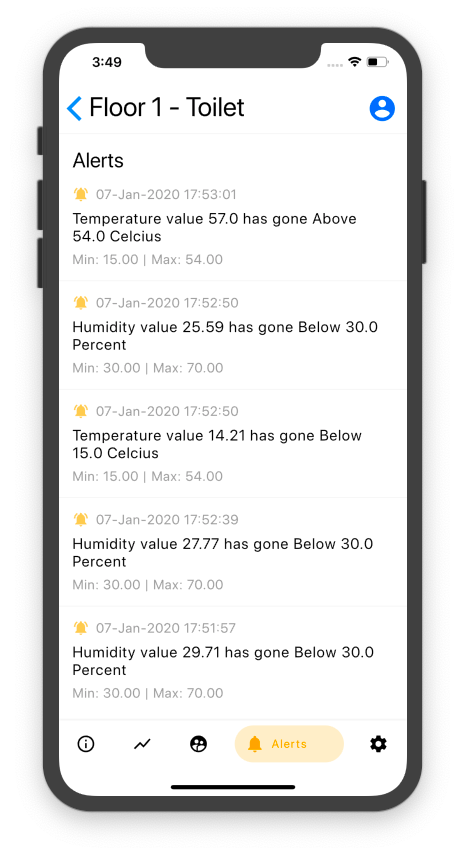

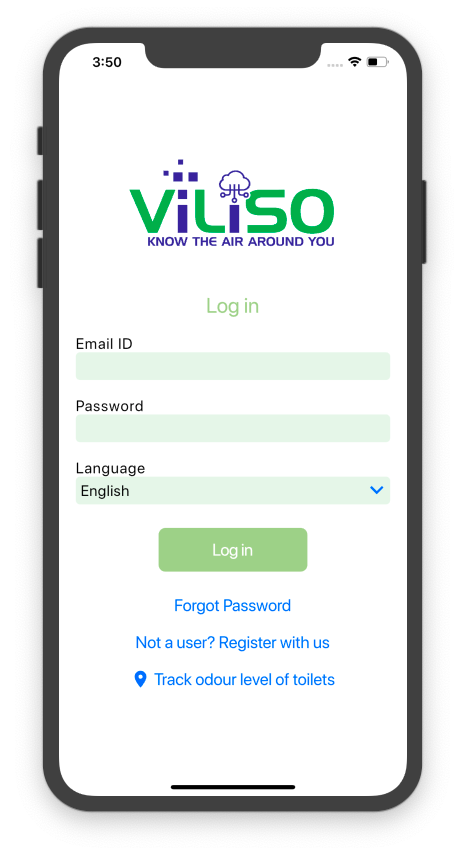

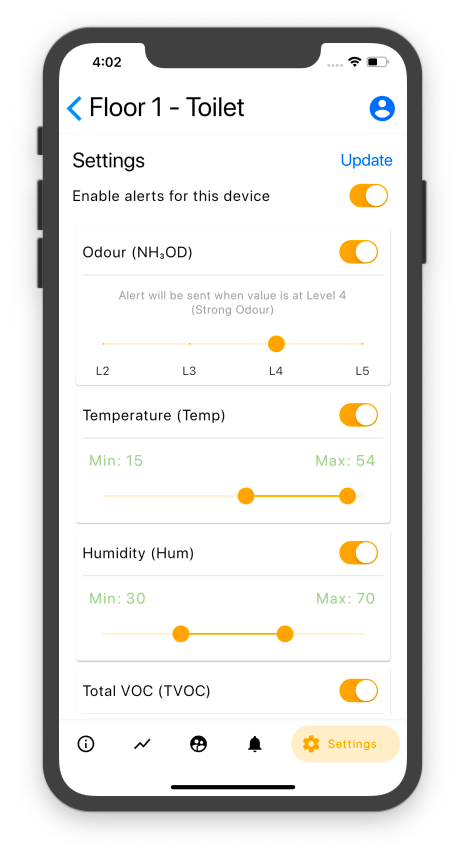

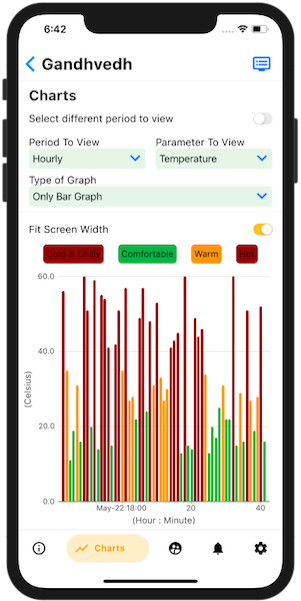

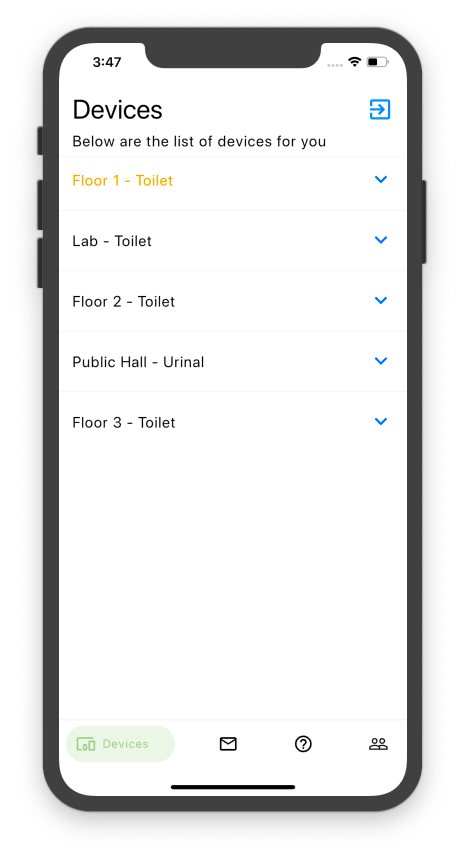

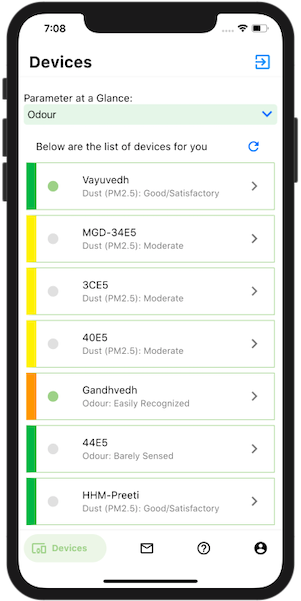

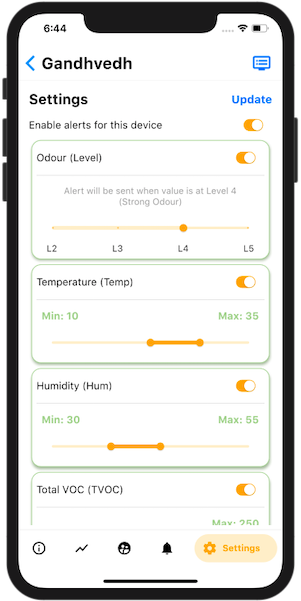

smartHHM Mobile Interface

smartHHM Mobile Interface

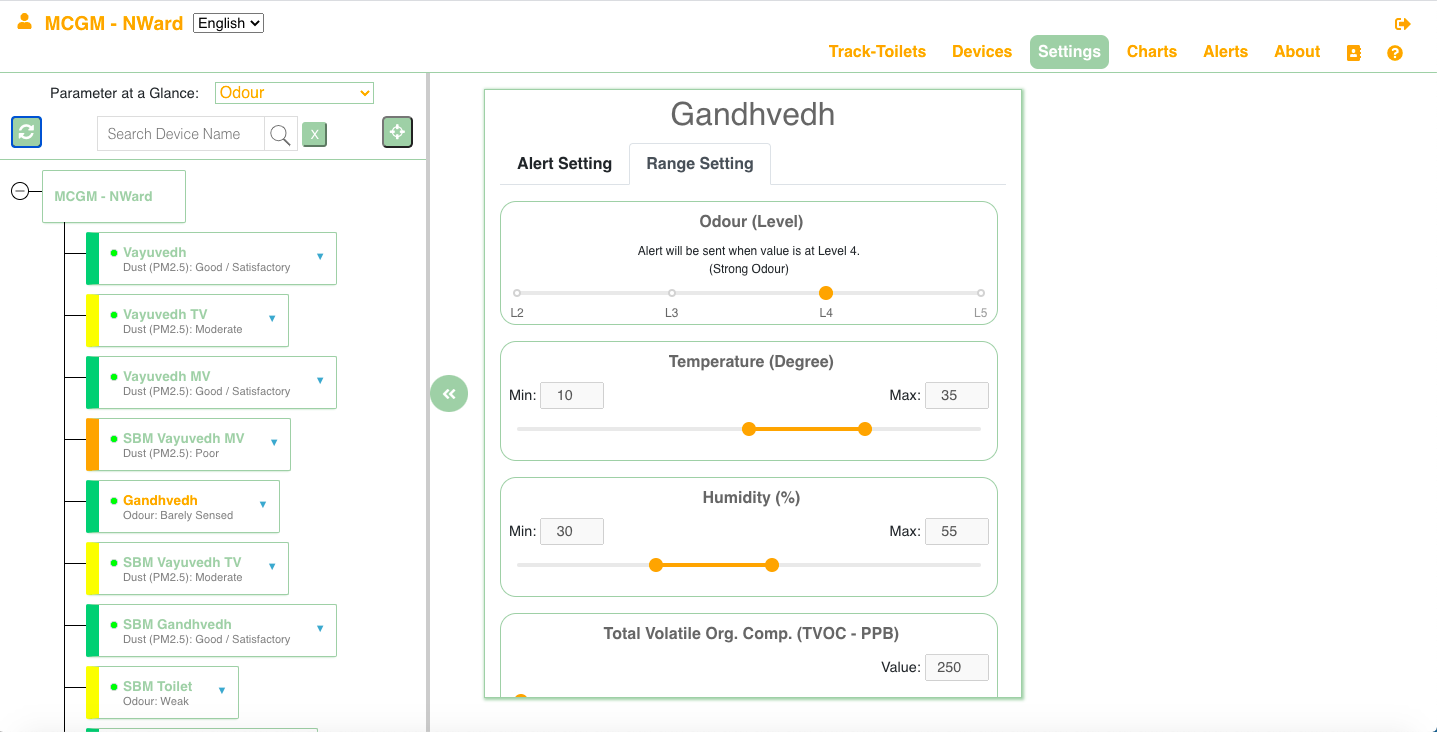

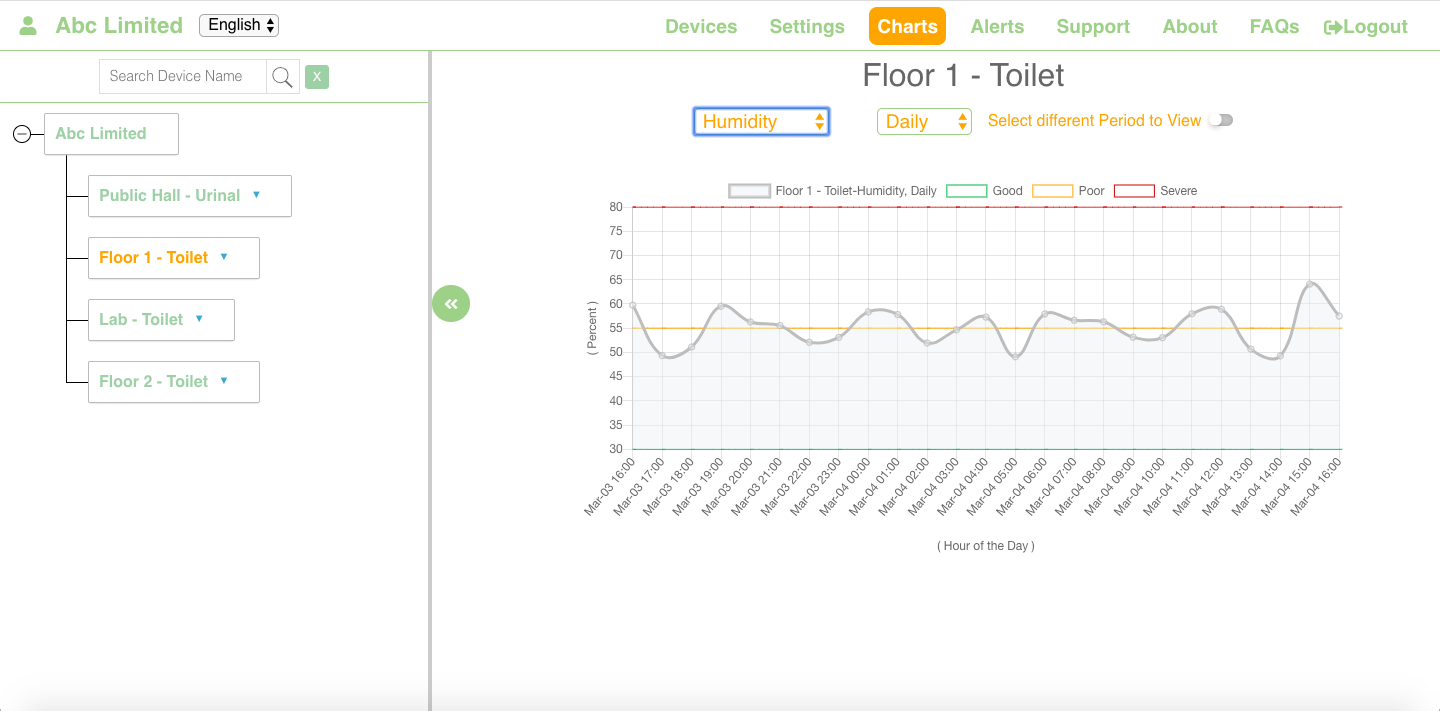

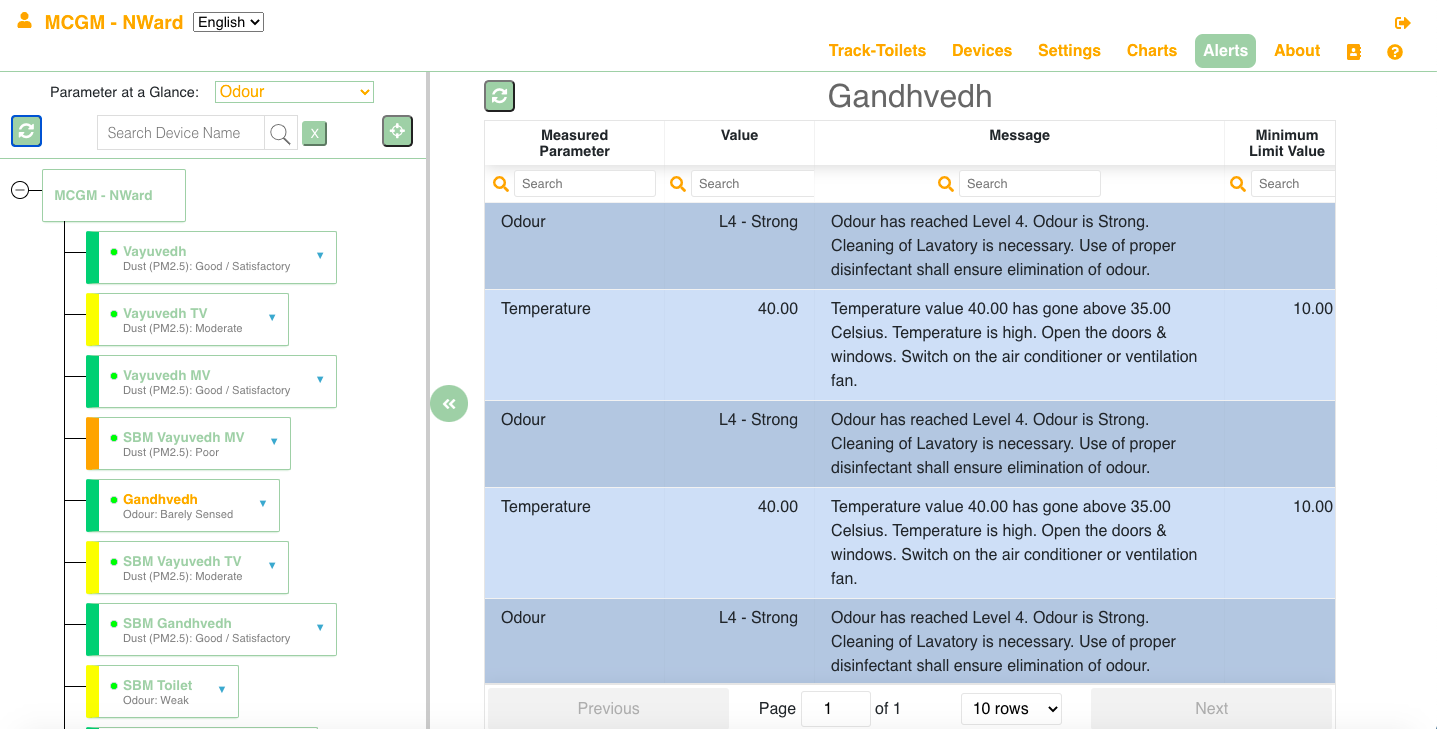

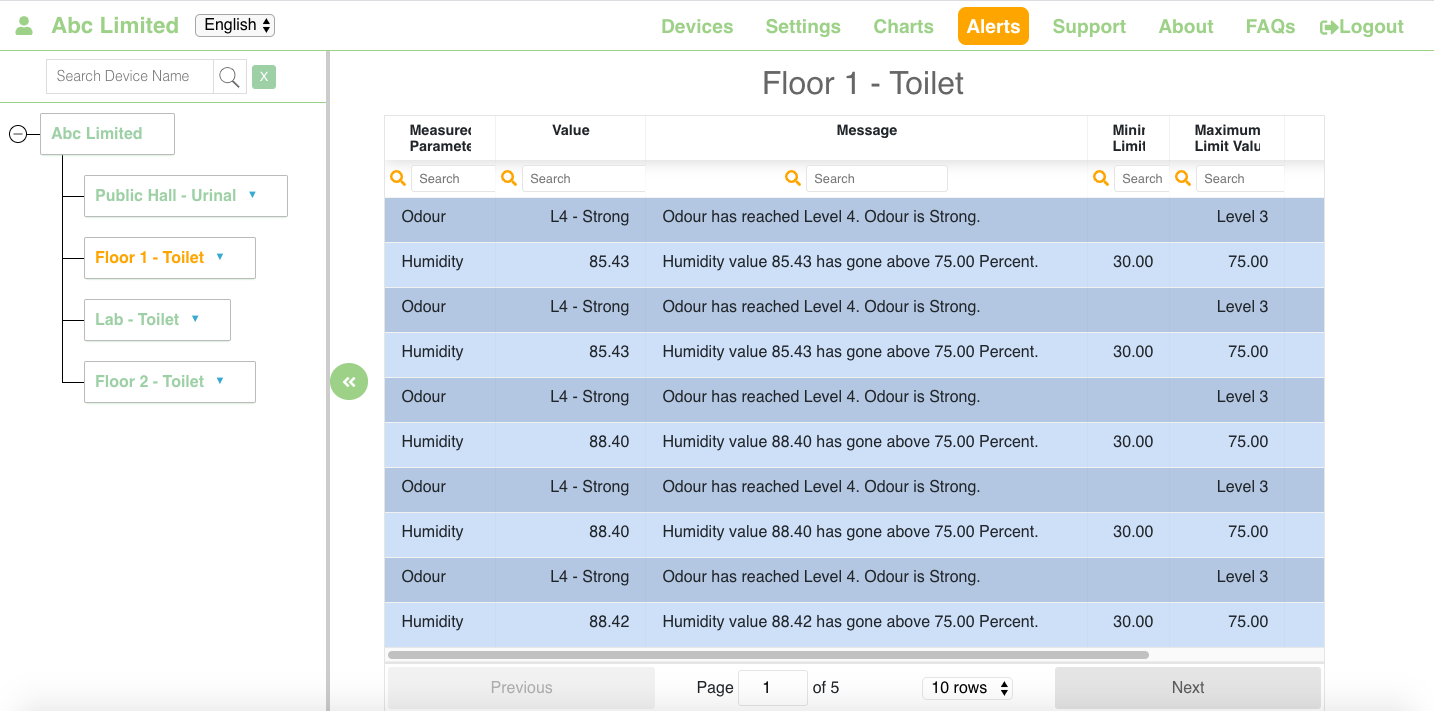

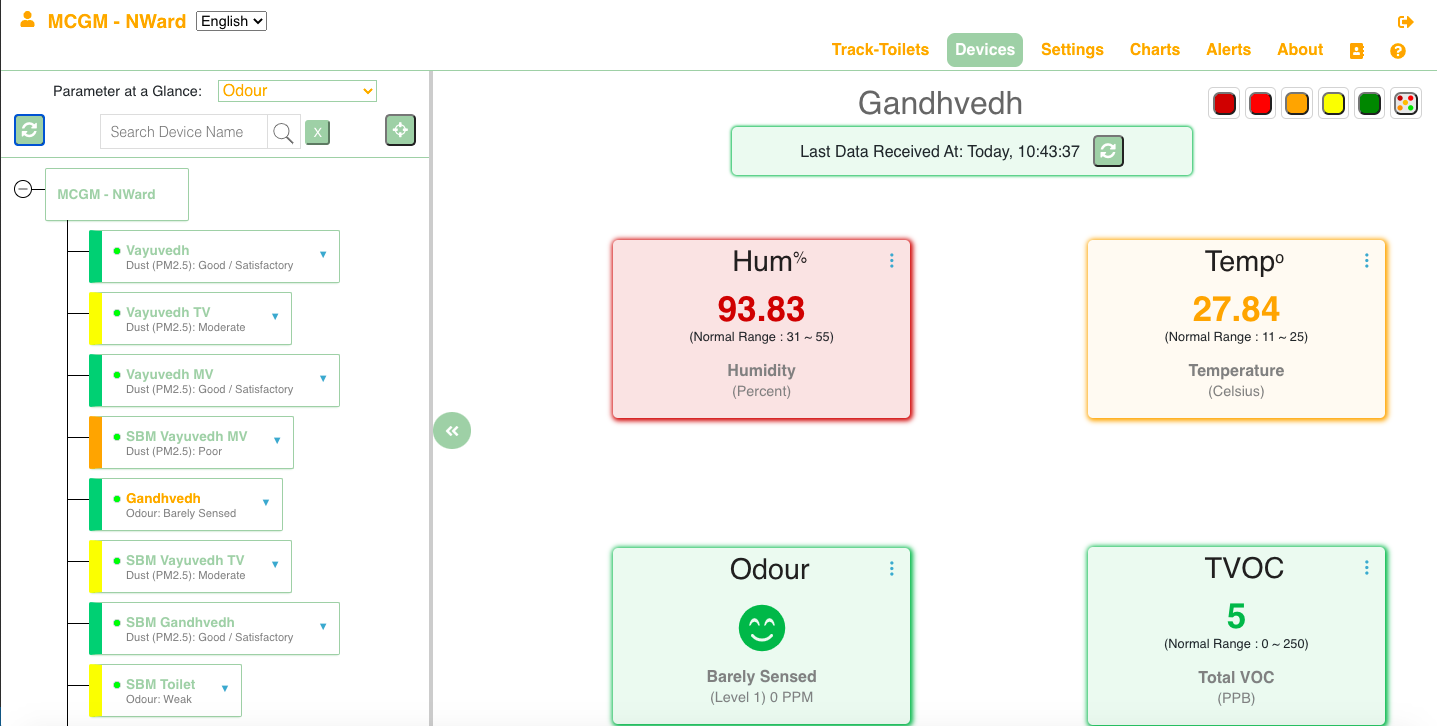

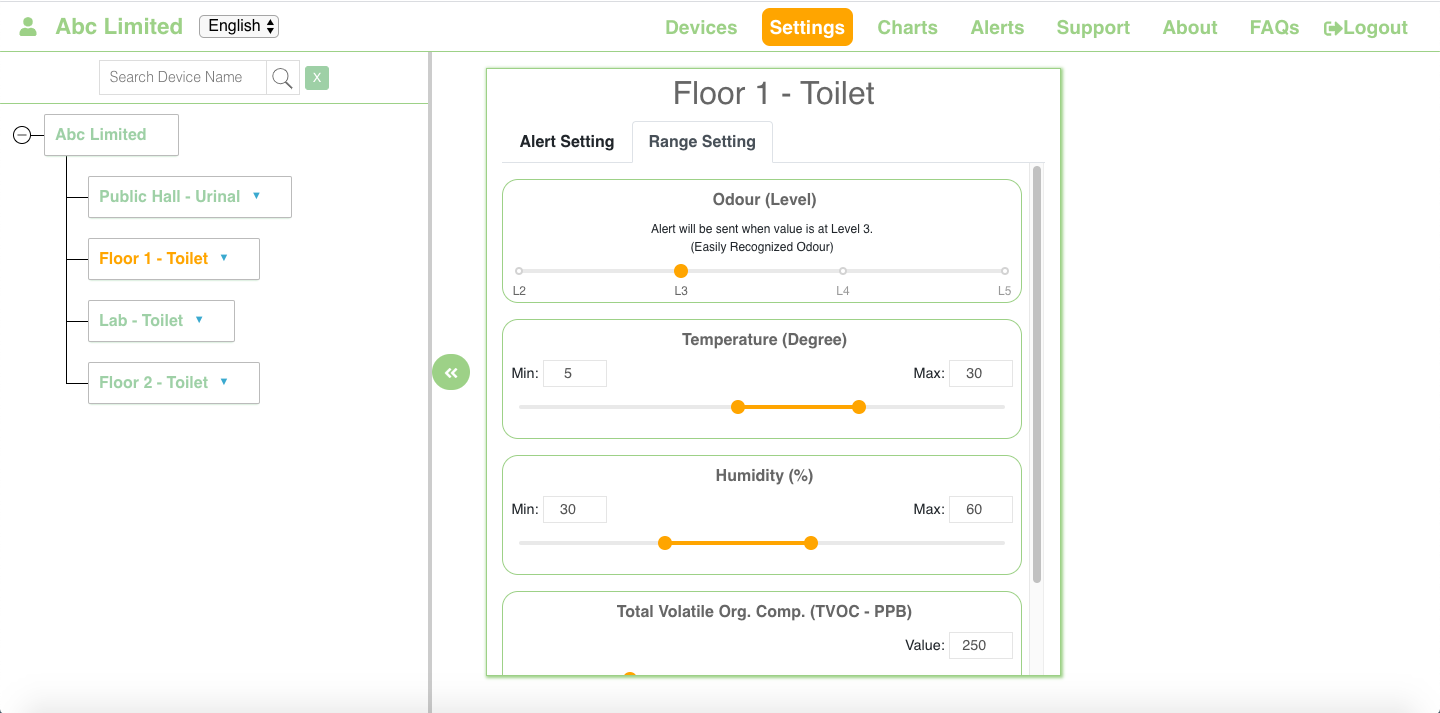

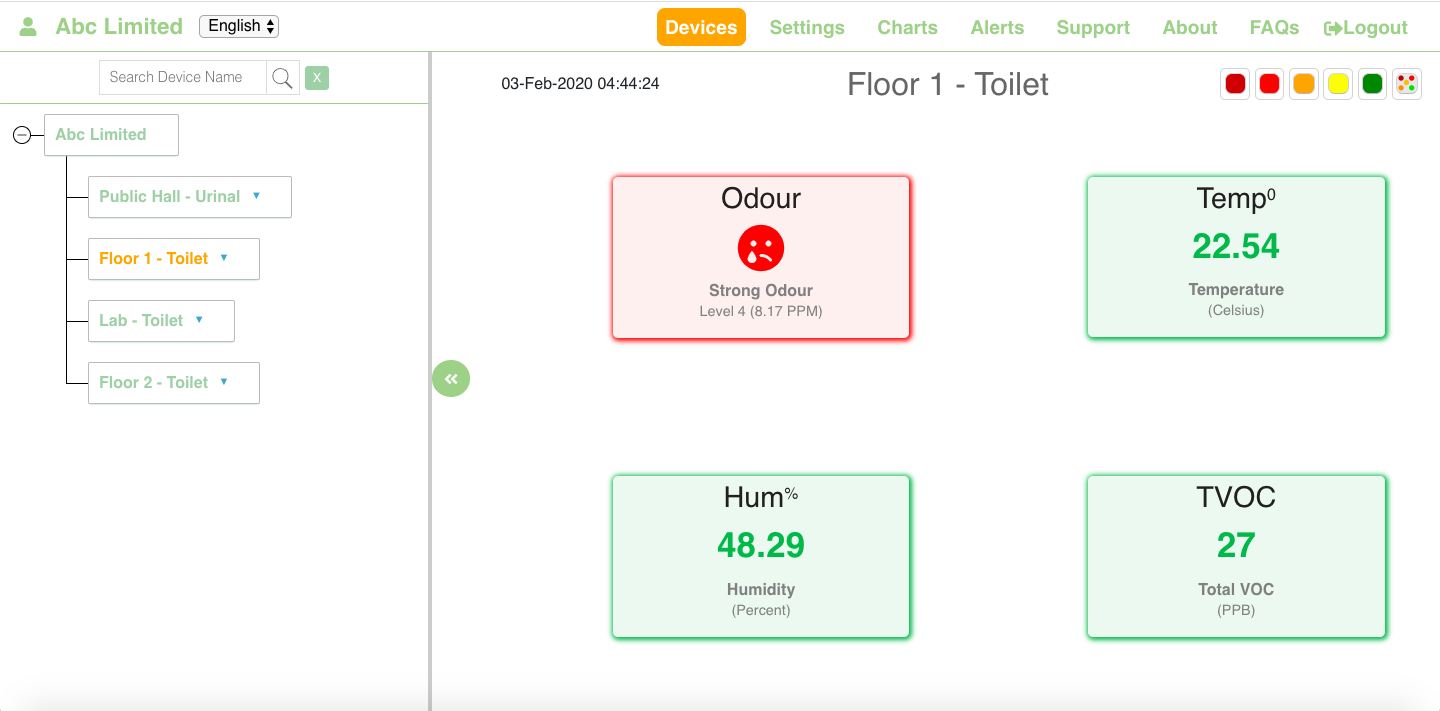

smartHHM Web Interface

Gandhvedh™ Specifications

Input Supply Voltage	110 V to 230 V AC
Operating Ambient Temperature	-10 to +50 Deg Celsius
Body material	ABS Plastic
Mounting method	Wall mounting, Roof mounting
Size	120 X 120 X 65 mm
Functions:
Temperature	-10 to +50 Deg C Accuracy +/- 2
Humidity	0 – 100% Accuracy +/- 3%
Gas / Odour Detection	Range	Sensor type
Odour	Level 1 to Level 5	MOS
TVOC – Total Volatile Organic Compound	0 – 29200 ppb	MOS

Toilet Tracker & Toilet Feedback Rating

Out of the 11 crore public toilets in India, most hardly get used.
This is because the person intending to use it is unaware about its location. Even when a person happens to come across a public toilet there is a high probability that he/she doesn’t use it due to hygiene concerns.

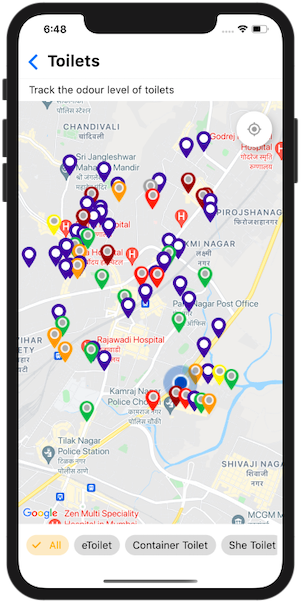

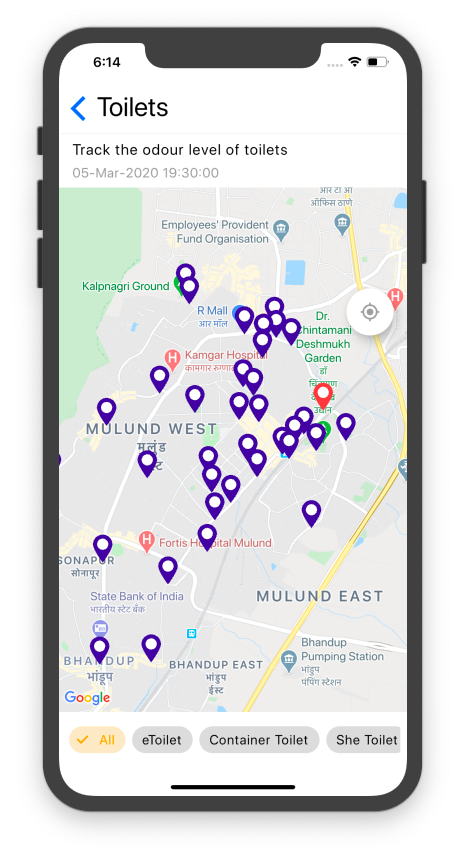

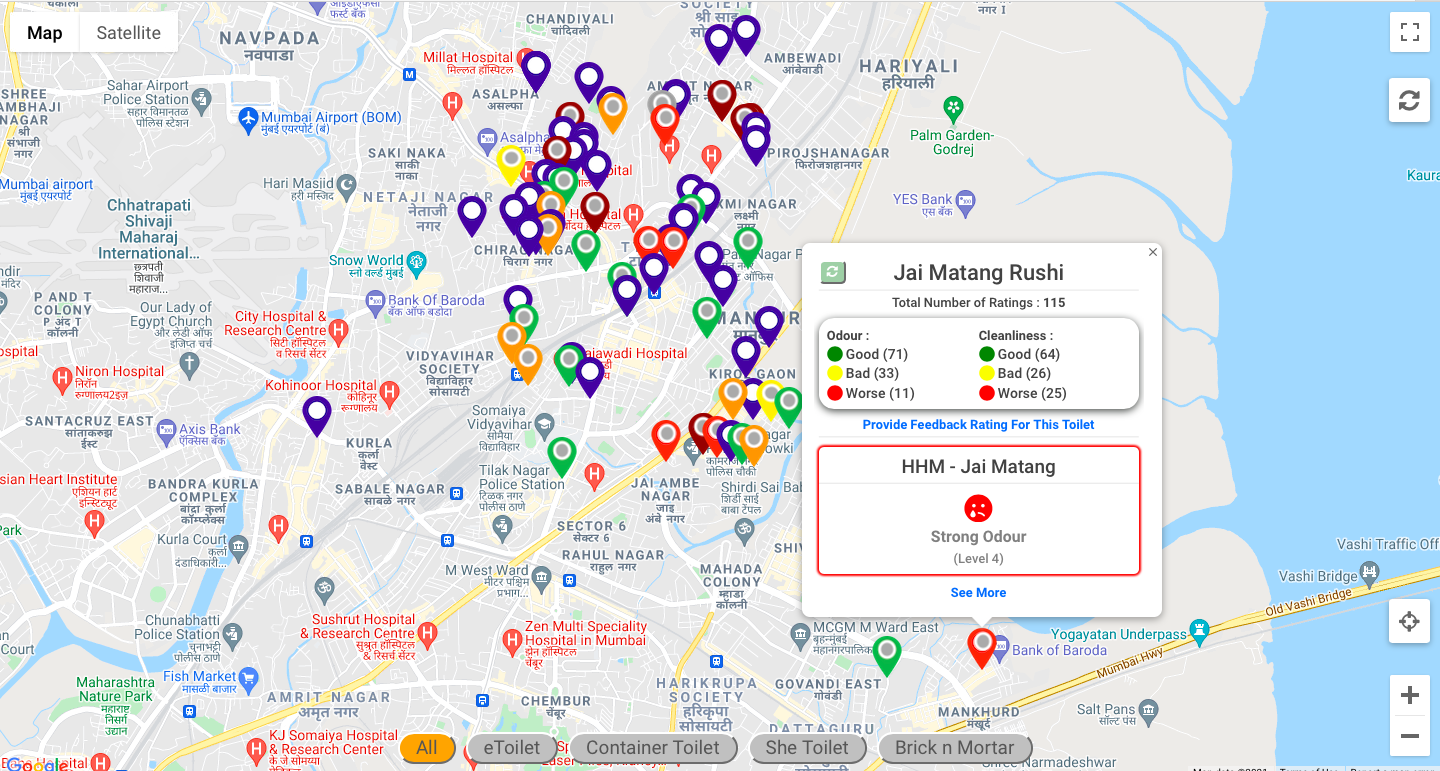

Toilet Tracker solves the two issues by providing the user with an application that points out the location and the hygiene index of public toilets in the area.
This will benefit most citizens who intend to use public toilets.

Out of the 11 crore public toilets in India, most hardly get used.
This is because the person intending to use it is unaware about its location. Even when a person happens to come across a public toilet there is a high probability that he/she doesn’t use it due to hygiene concerns.
Toilet Tracker solves the two issues by providing the user with an application that points out the location and the hygiene index of public toilets in the area.
This will benefit most citizens who intend to use public toilets.

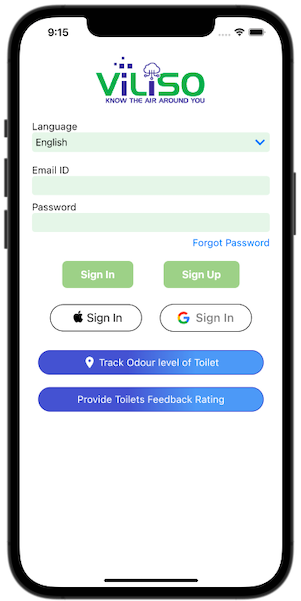

Mobile Interface

Desktop Interface

Mobile Interface

Desktop Interface

Gandhvedh^{^®}Case Study

Gandhvedh^{^®}

Case Study

Overview

Problem

The Government of India launched the Swachh Bharat Mission with the intent that India should become Open defecation free (ODF). However even after five years of its launch and execution, we find India has still not become ODF. Though we have established four walls of the toilet, yet people tend to go in open and this is a severe threat to public health and hygiene.
In Mumbai, the slum population is 41%, i.e. over 9 million people stay in slums. The toilets are taken care by both pay and use (public toilets) and Community Based Organisations (CBO). Community-based Organisation is a community partnership model, where few members of the community take the ownership to maintain the toilets. However these toilets still have the issue of sanitation and odour.
A good or bad smell is one of first things that people notice when entering toilets. Foul smell emanating from toilets is a major deterrent to end-users. The problem is identifying and tracking malodour from these toilets on a continual basis.

The Government of India launched the Swachh Bharat Mission with the intent that India should become Open defecation free (ODF). However even after five years of its launch and execution, we find India has still not become ODF. Though we have established four walls of the toilet, yet people tend to go in open and this is a severe threat to public health and hygiene.
In Mumbai, the slum population is 41%, i.e. over 9 million people stay in slums. The toilets are taken care by both pay and use (public toilets) and Community Based Organisations (CBO). Community-based Organisation is a community partnership model, where few members of the community take the ownership to maintain the toilets. However these toilets still have the issue of sanitation and odour.
A good or bad smell is one of first things that people notice when entering toilets. Foul smell emanating from toilets is a major deterrent to end-users. The problem is identifying and tracking malodour from these toilets on a continual basis.

Offered Solution

Viliso Technology is a technology-driven company in the field of IoT. Viliso has provided them a solution to measure odour intensity in toilets on a continuous basis. The solution involves an electronic device known as Gandhvedh^® and Mobile & Web application. The device requires internet connection and monitors the odour level and transmits the data to mobile & web app through cloud server. The device is fitted in the toilet where the odour monitoring is required. The device then sends the odour data to mobile app & web app which are used by the caretaker or monitoring authority responsible for sanitation of the toilet. Mobile app and web app both have facility to display the data of Odour, Temperature, Humidity and TVOC. The app also allows the users to view historical data in Hourly, Daily, Weekly and Monthly Graphical display format. Instant alerts are generated on mobile app, if any of the parameters cross the given threshold values. In this case timely alerts to both CBO and Caretakers has prompted appropriate action by the caretaker to keep the toilets clean and odour free. Alert based system helped them focus on the specific issue in time and reduced their dependence on direct feedback from users. The mobile app / web app user has option to set the alert level values.

Viliso Technology is a technology-driven company in the field of IoT. Viliso has provided them a solution to measure odour intensity in toilets on a continuous basis. The solution involves an electronic device known as Gandhvedh^® and Mobile & Web application. The device requires internet connection and monitors the odour level and transmits the data to mobile & web app through cloud server. The device is fitted in the toilet where the odour monitoring is required. The device then sends the odour data to mobile app & web app which are used by the caretaker or monitoring authority responsible for sanitation of the toilet. Mobile app and web app both have facility to display the data of Odour, Temperature, Humidity and TVOC. The app also allows the users to view historical data in Hourly, Daily, Weekly and Monthly Graphical display format. Instant alerts are generated on mobile app, if any of the parameters cross the given threshold values. In this case timely alerts to both CBO and Caretakers has prompted appropriate action by the caretaker to keep the toilets clean and odour free. Alert based system helped them focus on the specific issue in time and reduced their dependence on direct feedback from users. The mobile app / web app user has option to set the alert level values.

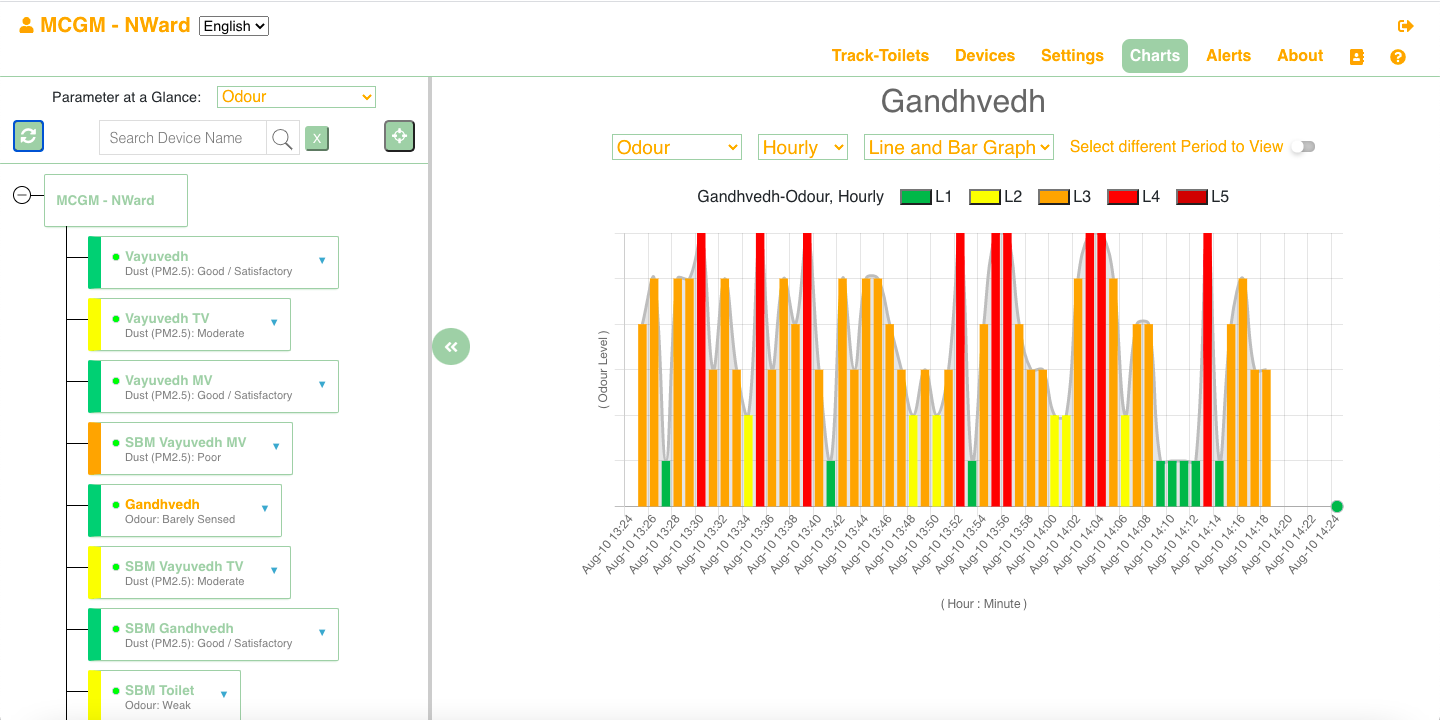

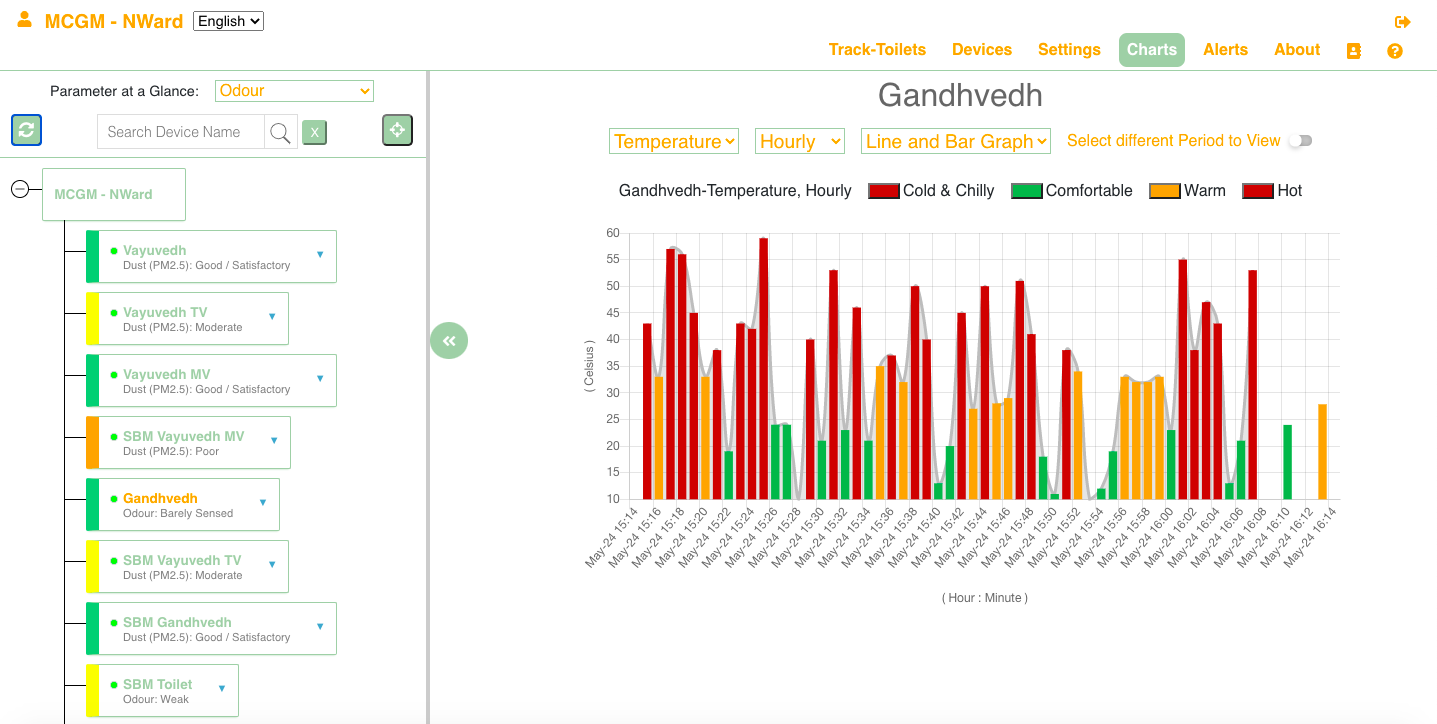

Web-interface showing Chart Screen

Web-interface showing

Chart Screen
